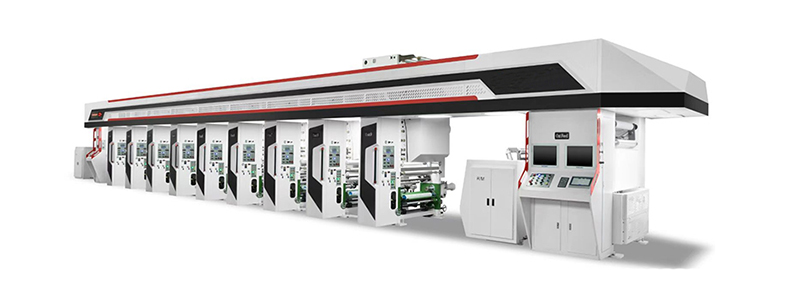

Product Description:
YB200 type high-speed gravure printing machine is our company with Europe's high-end printing equipment and a research and development at home and abroad to meet the high-end market products, the printing machine is a shaft drive, no backlash drive system, all the printing operation are synchronous operation by the central controller, with a fast, fast, the lifting speed and material receiving low rejection rate, unit used in flexible printing, shorten the preparation time, simplify the mechanical structure etc…
Main technical parameters
Print flow direction from left to right
Printing color number 1-12color
Working Station 10-14units
Printing width range 400-1550mm
Max mechanical Speed 230m/min (plate dia. 170mm)
Max printing Speed 200m/min
Plate cylinder dia. Ф120mm-Ф300mm
Plate cylinder width 680-1550mm
Color control precision Vertical: ≤±0.1mm(Automatic)
Horizontal:±0.1mm(Automatic)
Max. Unwind dia. Ф800mm
Max. Rewind dia. Ф800mm
Unwind and Rewind structure both shaft and shaftless
Provide ink way Cyclic ink supply
Transfer ink way Ink tank should outside printing station at operation side
Doctor move range ±5mm(adjustable)
Unwind & Rewind air shaft 3”6”
Unwind & Rewind width range 400-1550mm
Cutting device Both side Non stop automatic cutting
Tension control mode four swing roller closed-loop contro
Tension adjusting range 3 -25kg
Paper core Ф76mm (inside dia.)
Air supply pressure 0.8Mpa
Dry method Electricity
Max. Temp. in dryer 80℃ (environment temp. 20℃)
Total power: about 200kw
Size: 22000x 4400x3300(mm)
Weight from 23000kg about
Power source 380V±10%,3P,5L
Color Ivory

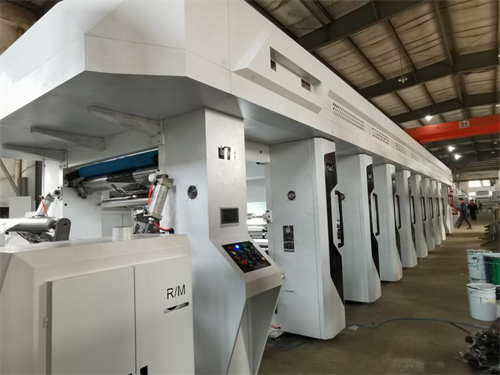

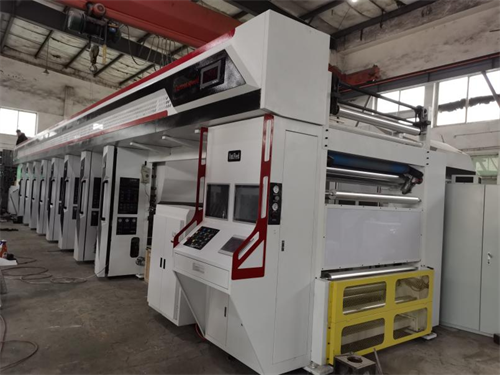

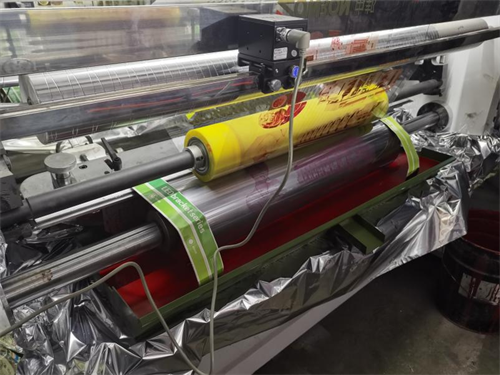

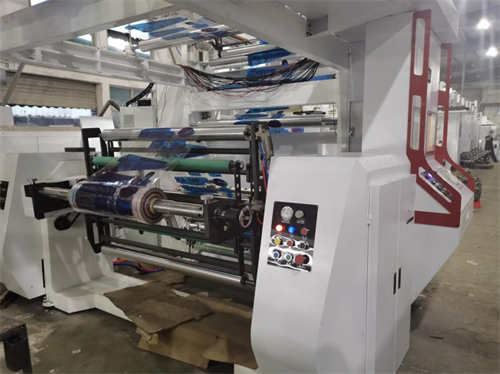

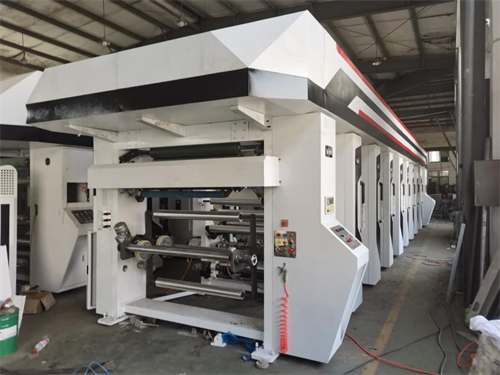

Pictures for reference :

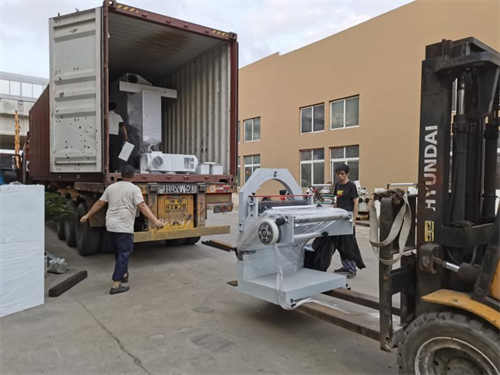

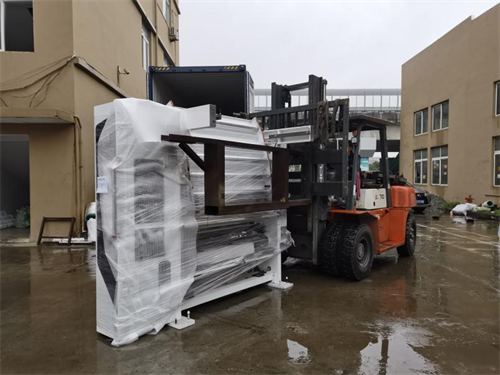

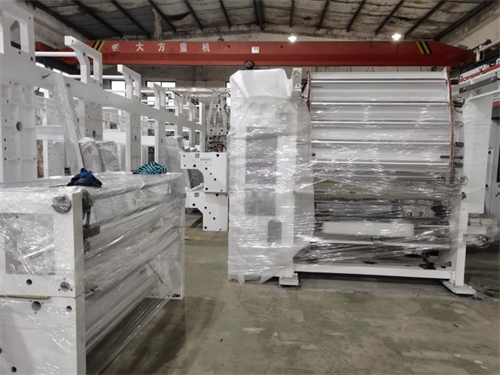

Loading photos:
FAQ:
Q:Are you factory or trading company?
A: We are factory and manufacture.
Q: Where is your factory located? How can I visit your factory?
A: We are located in wenzhou, you can fly to wenzhou airport. We can pick you up from the airport to your hotel.
Q:How to place my order?
A: Just contact our Trader Manager, E-mail, WhatsApp,Skype or telephone to confirm the product, make the deposit then we will start to manufacture.
Q:Can you offer some video or pictures of the Q packing machine?
A:Yes, of course. Besides, we can help you to have your products packaging if you are available to send us some of your product and then record a video for your reference.
Q:When can I get my machine after I paid?
A:The delivery time is based on the exact machine you confirmed.
Q:Can you design the machine according to our requirements?
A:Yes. We not only can customize the machine according to your technical drawing, but also can make new machine according to your requirements.
Q:Can you offer overseas technical support?
A:Yes. We can send engineer to your company to set the machine and train your
worker if needed.
Q:How can I trust you for the first time business ?
A:Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q:Is engineer available to serve oversea?
A:Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
