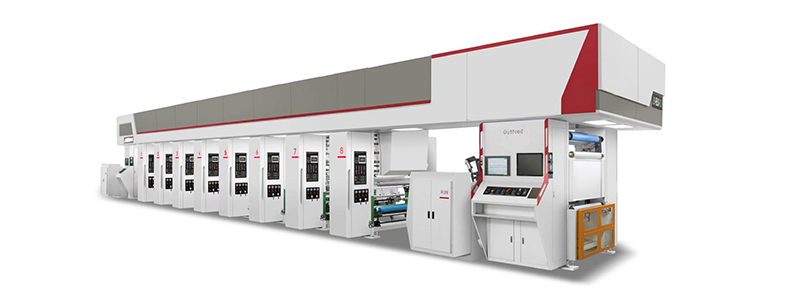

ELS-YB350 automatic register Electronic Shaft rotogravure /gravure printing machine
Product Description：
YB350 type electronic axis high-speed gravure printing machine is our company with Europe's high-end printing equipment and a research and development at home and abroad to meet the high-end market products, the printing machine is a no shaft drive, no backlash servo drive system, all the printing operation are synchronous operation by the central controller, with a fast, fast, the lifting speed and material receiving low rejection rate, unit used in flexible printing, shorten the preparation time, simplify the mechanical structure etc…
Main technical parameters
Print flow direction from left to right
Printing color number 1-12color
Working Station 10-14units
Printing width range 400-1550mm
Max mechanical Speed 350m/min (plate dia. 170mm)
Max printing Speed 300m/min
Plate cylinder dia. Ф120mm-Ф300mm
Plate cylinder width 680-1550mm
Color control precision Vertical: ≤±0.1mm(Automatic)
Horizontal:±0.1mm(Automatic)
Max. Unwind dia. Ф800mm
Max. Rewind dia. Ф800mm
Unwind and Rewind structure both shaft and shaftless
Provide ink way Cyclic ink supply
Transfer ink way Ink tank should outside printing station at operation side
Doctor move range ±5mm(adjustable)
Unwind & Rewind air shaft 3’, 6’
Unwind & Rewind width range 400-1550mm
Cutting device Both side Non stop automatic cutting
Tension control mode four swing roller closed-loop contro
Tension adjusting range 3 -25kg
Paper core Ф76mm (inside dia.)
Air supply pressure 0.8Mpa
Dry method Electricity
Max. Temp. in dryer 80℃ (environment temp. 20℃)
Total power: about 350kw
Size: 22000x 4400x3300（mm）
Weight from 28000kg about
Power source 380V±10%,3P,5L
Color Ivory

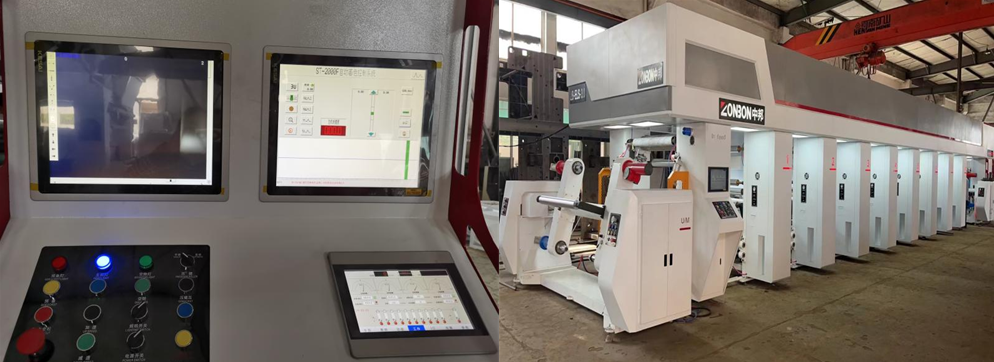

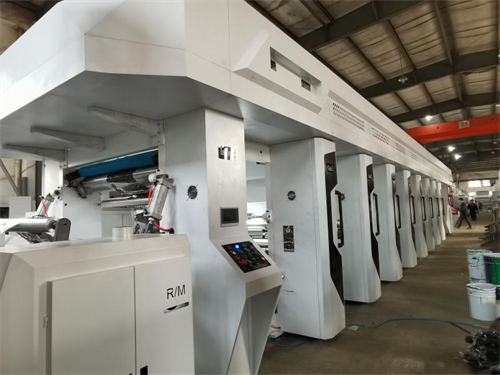

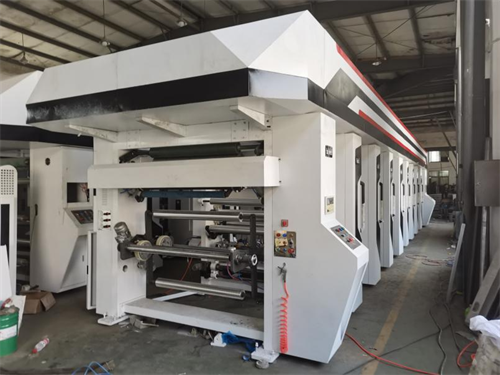

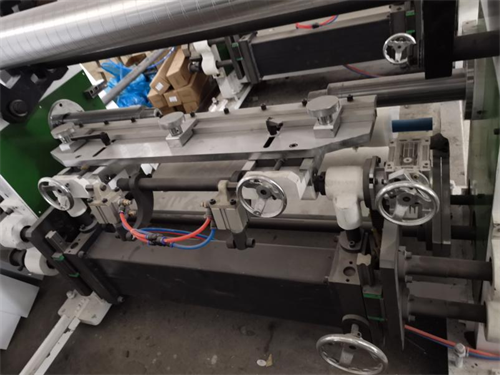

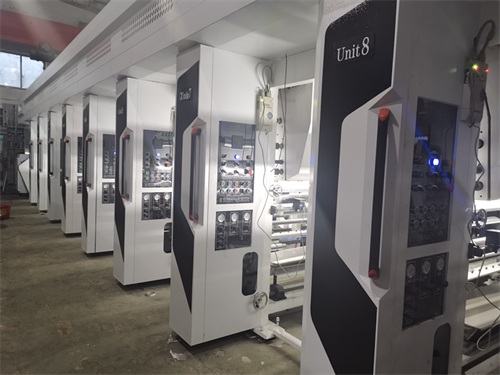

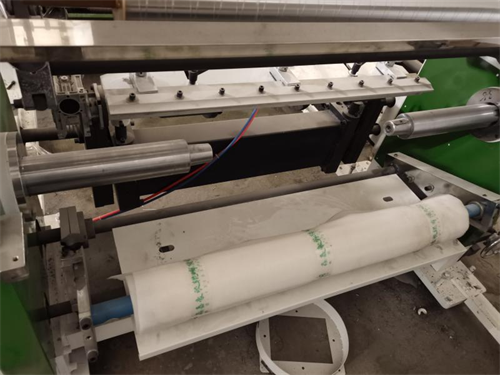

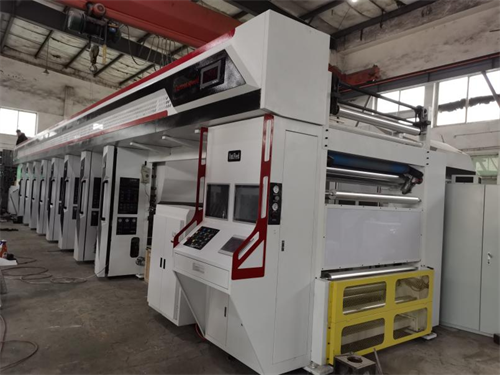

Pictures for reference ：

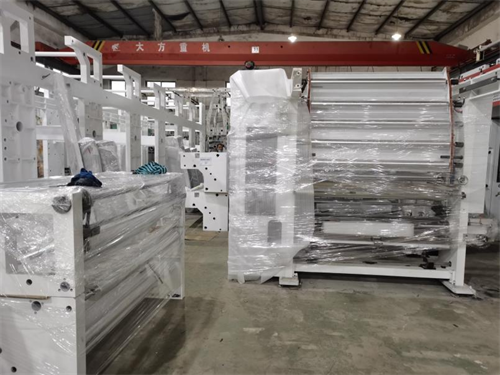

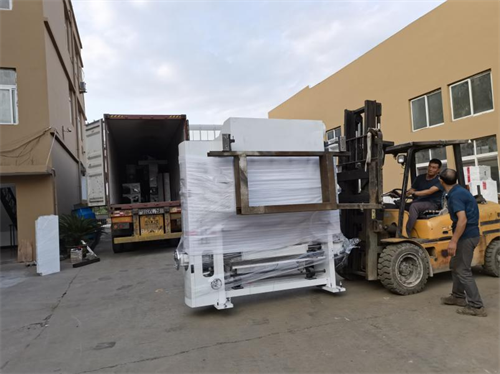

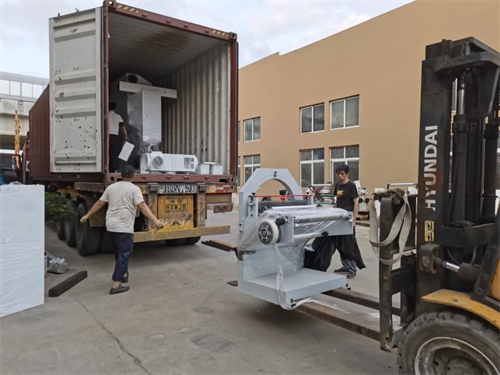

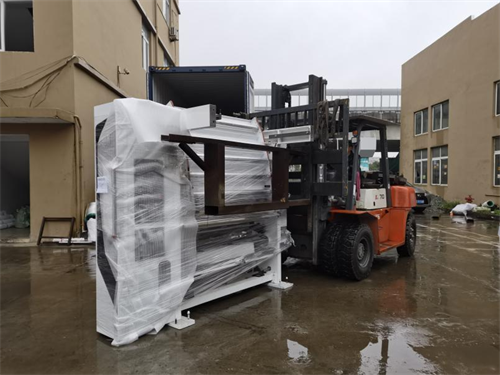

Loading photos：
FAQ:
Q:Can you design the machine according to our requirements?
A:Yes. We not only can customize the machine according to your technical drawing, but also can make new machine according to your requirements.
Q:Can you offer overseas technical support?
A:Yes. We can send engineer to your company to set the machine and train your
worker if needed.
Q:Why our customers trust and choose us?
A:1.manufacturer
2.we have stocks
3.delivery fast
4.senior engineer
5.competitive price
6.high quality
7.strict quality control
8.over 10 years experience
9.provide test
10.varity of goods
11.excellent after-sales services
12.advanced machinery and equipment
Q:How can I trust you for the first time business ?
A:Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q:Is engineer available to serve oversea?
A:Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q:How can we make sure about the machine quality after we put the order?
A:Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
