Product Description：
USE：This machine is used for BOPP、PET、PVG、PE and Paper etc with good printing performance of rolling material for multicolor continuous printing
Flow: From left to right
Colors ：6-10 colors
Max materials width ：380-1350MM
Max speed ：160m/min(dia ：200mm printing cylinder )
Printing diameter range: diameter 100mm~ 330mm
Accuracy of registration: longitudinal plus or minus 0.1mm(automatic registration system tracking) (PE film plus or minus 0.2-0.25mm)
Transverse ±0.15mm (automatic tracking) (PE film ±0.2-0.25mm)
Unwinding diameter: Φ600mm
Winding diameter: Φ600mm
Tension range: 3-50kg (full load)
Source: 1.0 mpa
Impression force: 500kg (full load)
Spatula movement momentum: ±5mm
Drying method: 20KW
Total power of machine: about 120KW
Machine shape: 15000mm long, 3100mm wide, 2890mm high
Printing material: volume with paper 17G - 250G
PET 12-60 um PVC 30-100um
OPP 18-60 um BOPP 18-60 um
CPP 18-60 um composite membrane 15-60 um
Paper :36-150g/ m2
And other films that have the same properties as the above materials
Description of the main parts
Unwinder parts ：
Structure: Built-in double arm rotary frame and wall panel frame
A single passive unwinding of a reel
Feeding tension control: automatic tension control system
Pressure sensing roller tension testing device
Unwinding manual deviation correction device
The coiling material is placed in shaft mode
Specification: Maximum width of coil 150mm
Paper core of coil Φ76mm
Clamping method: air expansion axis Φ74mm (3 inches)
Maximum unwinding Φ600mm
Tension setting range: 3-30kg
Pressure sensor: Haitai products
Automatic tension controller: Haitai products
Feeding traction：
Structure: double roll to roll type, steel and soft combination
The steel roller is passive roller
The clutch of steel roll and soft roll is executed by the cylinder
Tension control: Tension control system
Specification: Steel roller Φ150mm
Soft roller diameter Φ120mm, polyurethane Shore 60 degrees -65 degrees
Tension setting: 3-30kg
Tension controller
Maximum pressure of soft roll: 100kg
Features: the combination of steel and soft roller, the division of tension section is guaranteed
Independent tension control, can meet the needs of printing tension (vector frequency conversion motor)
Tension control: easy to operate

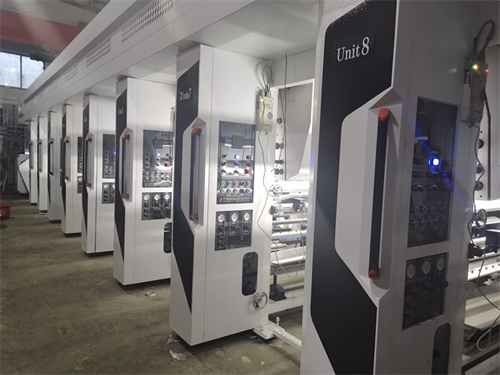

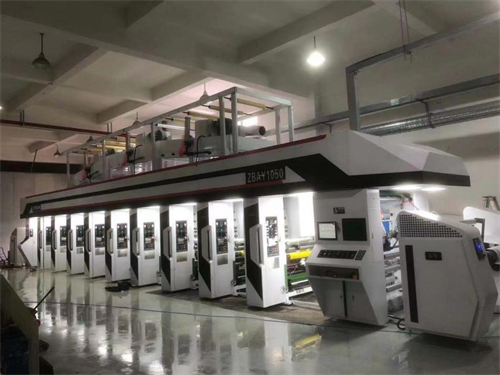

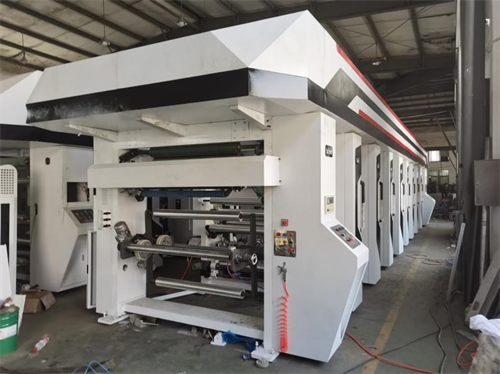

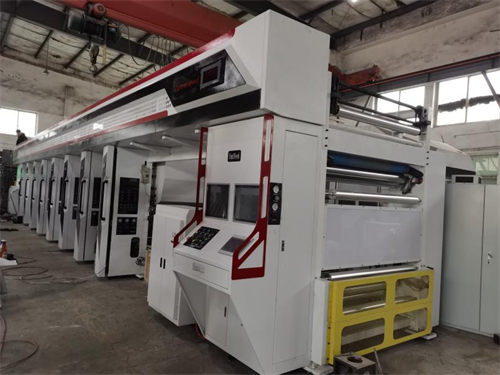

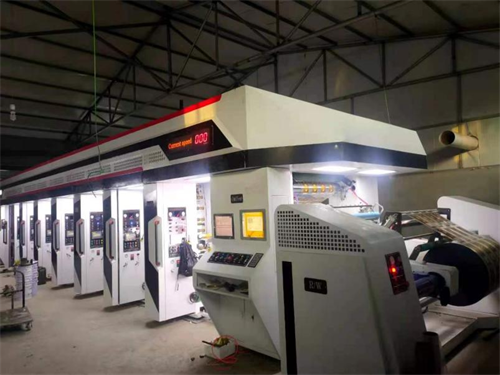

machine Pictures for reference ：

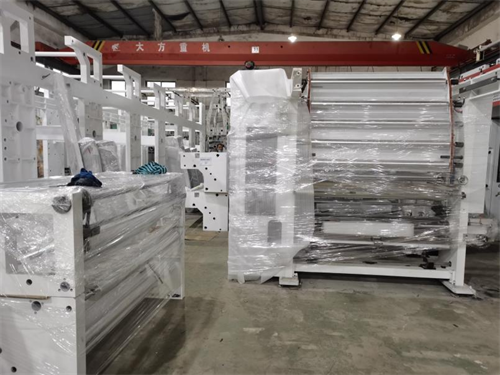

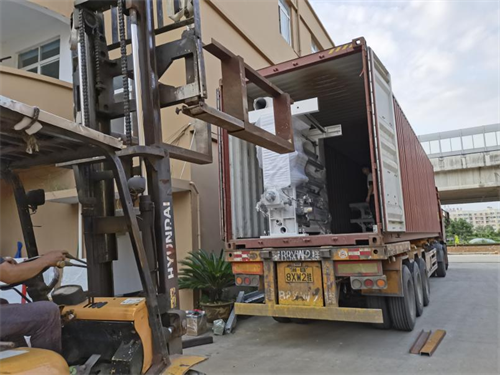

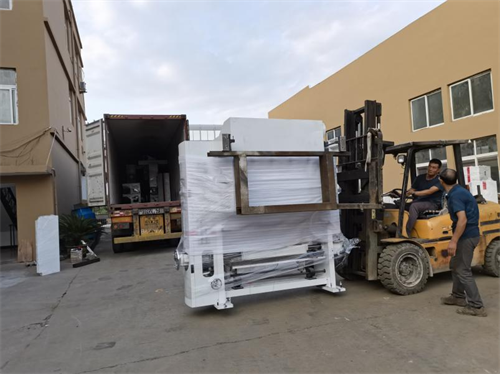

Loading photos：
FAQ:
Q:Are you factory or trading company?
A: We are factory and manufacture.
Q: Where is your factory located? How can I visit your factory?
A: We are located in wenzhou, you can fly to wenzhou airport. We can pick you up from the airport to your hotel.
Q:How to place my order?
A: Just contact our Trader Manager, E-mail, WhatsApp，Skype or telephone to confirm the product, make the deposit then we will start to manufacture.
Q:Can you offer some video or pictures of the Q packing machine?
A:Yes, of course. Besides, we can help you to have your products packaging if you are available to send us some of your product and then record a video for your reference.
Q:When can I get my machine after I paid?
A:The delivery time is based on the exact machine you confirmed.
Q:Can you design the machine according to our requirements?
A:Yes. We not only can customize the machine according to your technical drawing, but also can make new machine according to your requirements.
Q:Can you offer overseas technical support?
A:Yes. We can send engineer to your company to set the machine and train your
worker if needed.
Q:How can I trust you for the first time business ?
A:Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q:Is engineer available to serve oversea?
A:Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
