Product Description：
USE：
This machine is used for BOPP、PET、PVG、PE and Paper etc with good printing performance of rolling material for multicolor continuous printing
FEATURE：
1. The whole machine is fixed by permutation composition, according to the customers' requirement the printing color unit can be increased or decreased as well as the cover printing mechanism can be added.
2. The mainframe adopts vector frequency speed controlled.
3. Each unit of computer flashed system is controlled by separating microprocessor. It can adjust the flashed deviation quickly and precisely.
4. with display of flashed deviation, correcting for system comprehensive deviation as well as super-different slamming function.
5. Double photo-electricity checking; improve the whole checking and adjustment speed.
6. The winding and the winding traction adopt vector frequency motor and moment motor controller.
7. Wing is adopted with frequency motor with magnetic powder clutch to wind.
8. The printing pressure cylinders, discharging traction pressure cylinders and winding traction pressure cylinders adopt pneumatic controller.
9. Pneumatic back pressure shifting blade.
10. Gas expansion style loading and unloading shaft.
11. Winding and rewinding are both double working mechanisms to make the material complete with non-stop.
Main technical parameter:
|
Model |
YB –850-1350 |
|
Printing Colors |
8 |
|
Diameter of Printing cylinder |
100-300mm |
|
Max. Printing width |
380-1350mm |
|
Max. diameter of Unwind |
600mm |
|
Max. diameter of Rewind |
600mm |
|
Max. Mechanical Speed |
160m/min |
|
Register Precision |
≤0.10mm |
|
Drying Method |
Electric heating |

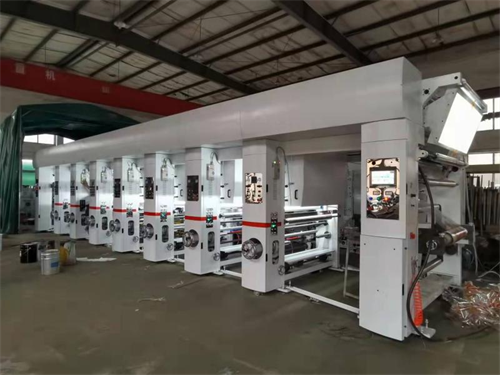

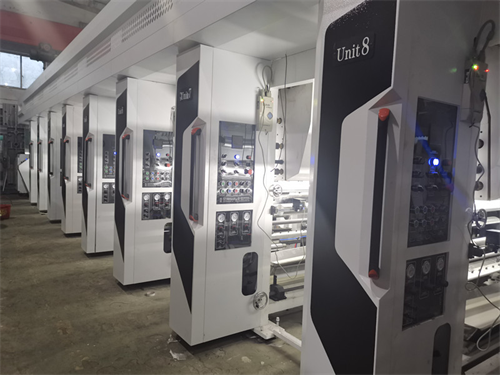

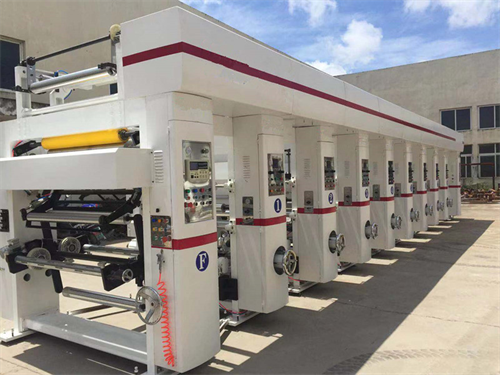

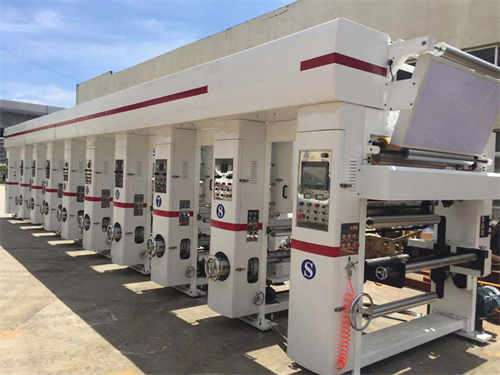

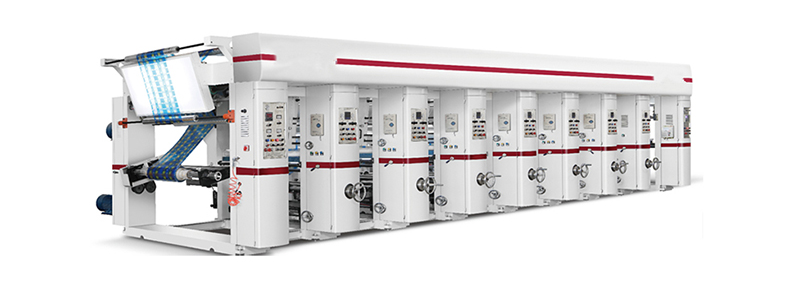

Machine Pictures for reference ：

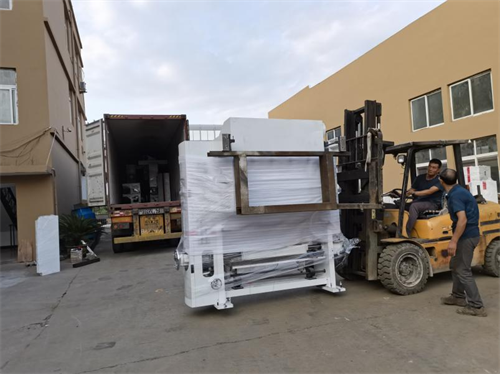

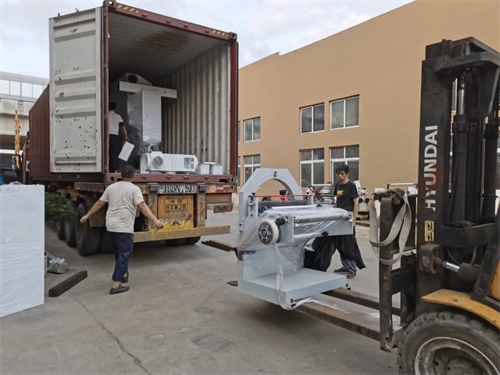

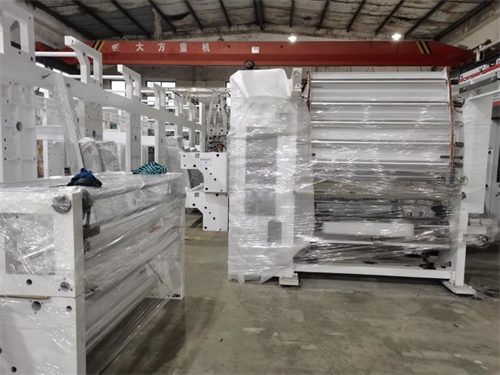

Loading photos：
FAQ:
Q:Are you factory or trading company?
A: We are factory and manufacture.
Q: Where is your factory located? How can I visit your factory?
A: We are located in wenzhou, you can fly to wenzhou airport. We can pick you up from the airport to your hotel.
Q:How to place my order?
A: Just contact our Trader Manager, E-mail, WhatsApp，Skype or telephone to confirm the product, make the deposit then we will start to manufacture.
Q:Can you offer some video or pictures of the Q packing machine?
A:Yes, of course. Besides, we can help you to have your products packaging if you are available to send us some of your product and then record a video for your reference.
Q:When can I get my machine after I paid?
A:The delivery time is based on the exact machine you confirmed.
Q:Can you design the machine according to our requirements?
A:Yes. We not only can customize the machine according to your technical drawing, but also can make new machine according to your requirements.
Q:Can you offer overseas technical support?
A:Yes. We can send engineer to your company to set the machine and train your
worker if needed.
Q:How can I trust you for the first time business ?
A:Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q:Is engineer available to serve oversea?
A:Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
