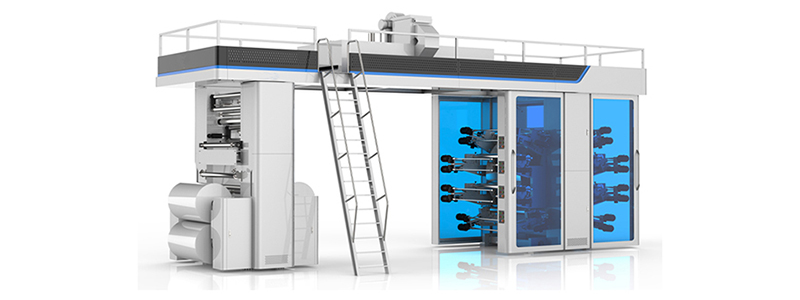

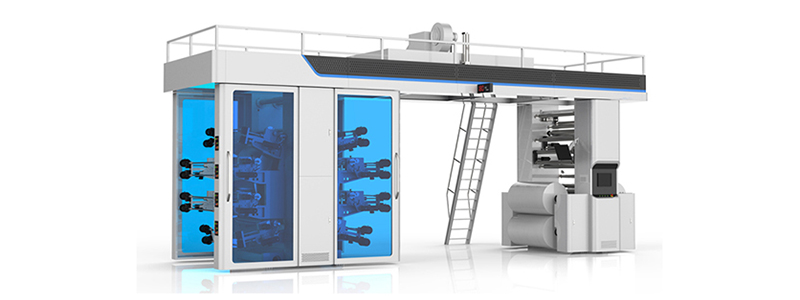

KSCI-E-8color High Speed CI Flexo Printing Machine
|
1、PrintingSubstrate: |
|
|
plastic film,Roll paper, non - woven fabrics and other flexible packaging materials |
|
|
2、The working principle of the machine (mainly including the following parts) : |
|
|
Unwind unit → pre-press tension swing bar → pre-press deviation correction → pre-press traction → printing unit (8 colors) → heating and drying → tension swing bar before traction → rewind traction → tension swing bar before rewinding → Rewind unit → control system and operating table |
|
|
3、Basic parameter |
|
|
Model |
KSCI-E-8 Color-1000mm-1500MM |
|
Printing Color |
8 Color(single side) |
|
Max material width |
1000mm |
|
Max effective printing width |
970mm |
|
Printing length |
345-860mm |
|
Mechanical speed |
50-280m/min |
|
Printing speed |
50-260m/min(According to the printing of different materials） |
|
Overprint precision |
Horizontal：±0.12 longitudinal：±0.13 |
|
Plate thickness (including double-sided adhesive tape) |
1.14 or 1.7mm(thickness of double-sided adhesive: 0.38mm) |
|
Anilox roller |
Ceramic anilox roller |
|
Ink type |
Water based ink or Solvent ink |
|
Heating power |
128KW |
|
Total power |
168KW |
|
Machine weight |
About：20000Kg |
|
Machine size |
8500*3400*4250mm |
|
Working power supply |
3P 380V 50HZ |

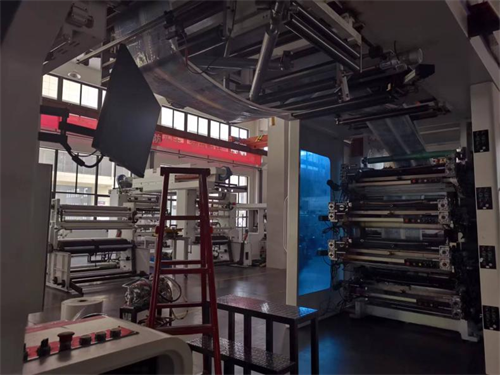

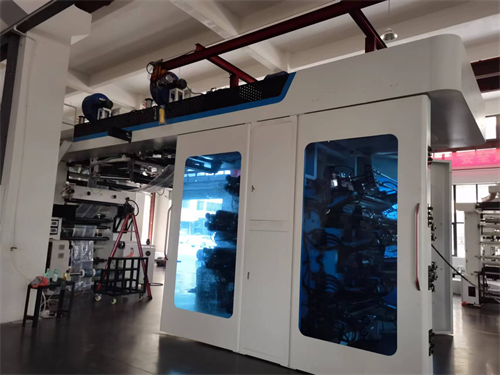

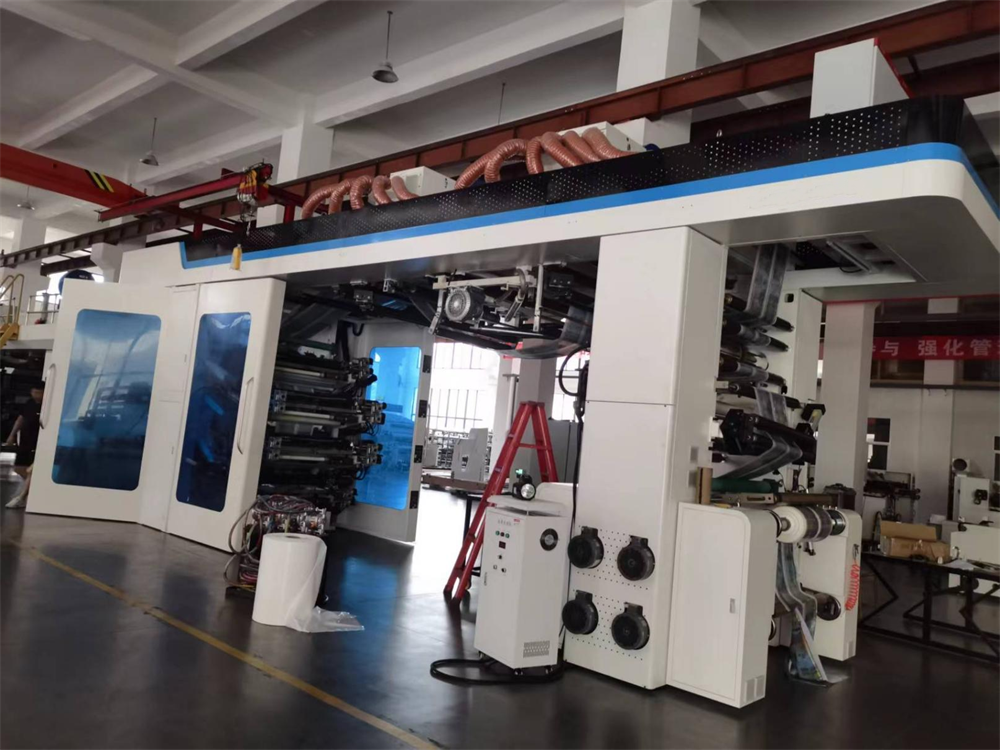

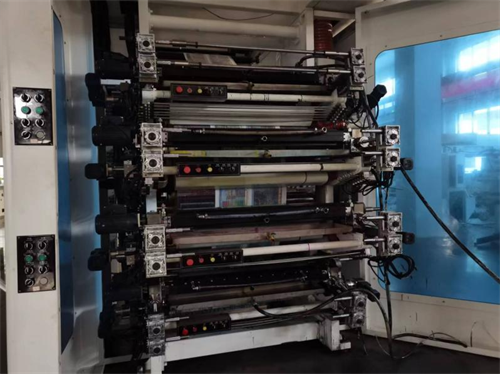

Pictures for reference：

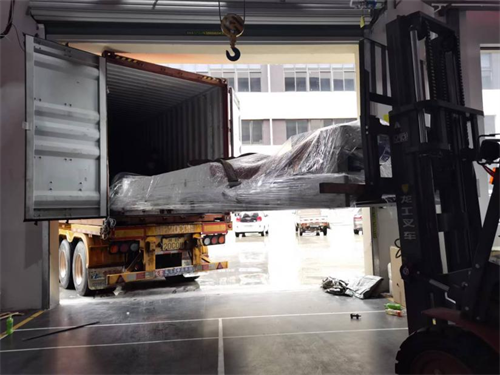

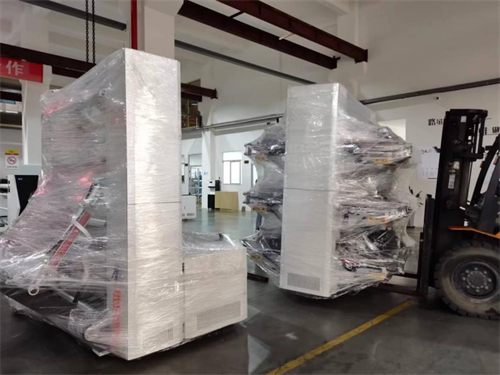

Loading photos：
FAQ:
Q:Are you factory or trading company?
A: We are factory and manufacture.
Q: Where is your factory located? How can I visit your factory?
A: We are located in wenzhou, you can fly to wenzhou airport. We can pick you up from the airport to your hotel.
Q:How to place my order?
A: Just contact our Trader Manager, E-mail,WhatsApp，Skype or telephone to confirm the product, make the deposit then we will start to manufacture.
Q:Can you offer some video or pictures of the Q packing machine?
A:Yes, of course. Besides, we can help you to have your products packaging if you are available to send us some of your product and then record a video for your reference.
Q:When can I get my machine after I paid?
A:The delivery time is based on the exact machine you confirmed.
Q:Can you design the machine according to our requirements?
A:Yes. We not only can customize the machine according to your technical drawing, but also can make new machine according to your requirements.
Q:Can you offer overseas technical support?
A:Yes. We can send engineer to your company to set the machine and train your
worker if needed.
Q:How can I trust you for the first time business ?
A:Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q:Is engineer available to serve oversea?
A:Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
