Technical Parameter:
1) Ink Roller :Ceramic anilox roller
2) Ink :Adopt the automatic circle system ,running ink by single small motor
3) Timing :Adopt frequency speed control, small fluctuations running.
4) Unwinding and winding ways :Adopt magnetic powder tension control
5) Ink way :Chamber doctor blade and anilox roll
6) Up and down plate :Adopt the hydraulic pressure rising and down the printing plate automatically
7) Smooth roller :Adopt the special steel processing ,and through the special technique treatment , and plating thickness of 8 silk protective layer of hard chromium, beat the following in the 0.03mm
8) Traction Rollers :Adopt small semi-enclosed bearings, with static balance and dynamic balance treatment, hard oxidation
treatment, small resistance, small beating.
9) Drying device: Two sets with ventilation hair heating devices, which use a central heating temperature control system and the control group
10) Body: Thick wall, thick base, making the machine more stable.
11) Control way: PLC control
Main Parameter：
|
1）Main Parameter |
|
|
Model： |
YTB-4color-600mm-1500mm |
|
Max Width of Material |
600mm-1500mm |
|
Max.Width of Printing： |
570mm-1470mm |
|
Material： |
Paper、Non-woven fabric、Woven Fabric 、Film and so on. |
|
Printing color： |
4colors |
|
Max.Length of Printing |
300-600mm |
|
Machinery mechanical speed |
50-150m/min |
|
Max.Speed of Material Printing |
50-120m/min(according to the printing materials) |
|
Thickness of Plate (including the glue) |
1.7mm or 2.28mm |
|
machine weight |
About 5000Kg |
|
machine dimension （L×W×H） |
5.6m×1.7m×3m |

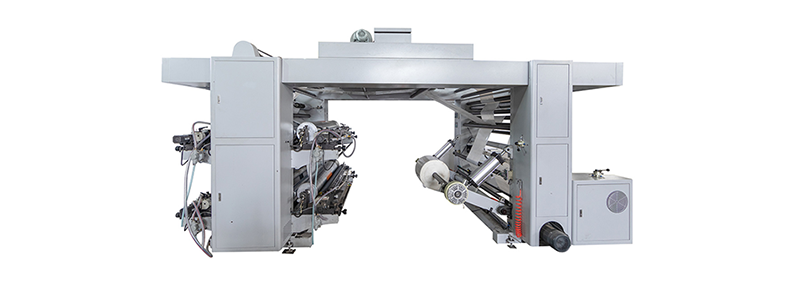

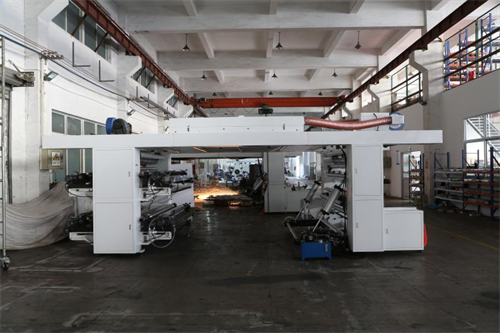

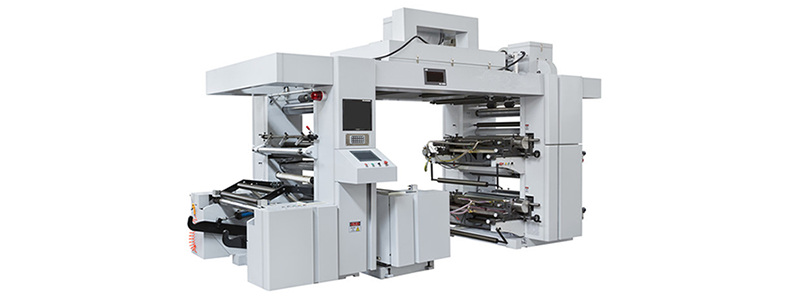

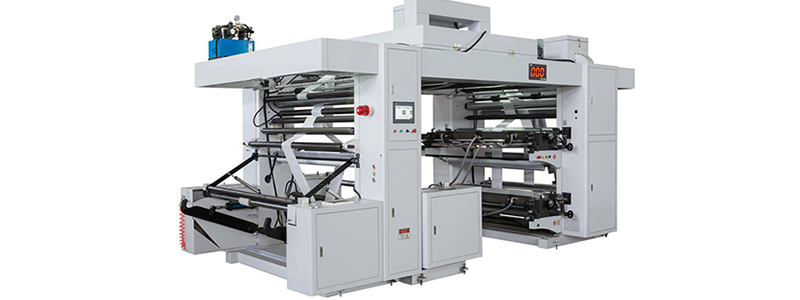

Pictures for reference ：
Loading photos：
FAQ:
Q:Are you factory or trading company?
A: We are factory and manufacture.
Q: Where is your factory located? How can I visit your factory?
A: We are located in wenzhou, you can fly to wenzhou airport. We can pick you up from the airport to your hotel.
Q:How to place my order?
A: Just contact our Trader Manager, E-mail, WhatsApp，Skype or telephone to confirm the product, make the deposit then we will start to manufacture.
Q:Can you offer some video or pictures of the Q packing machine?
A:Yes, of course. Besides, we can help you to have your products packaging if you are available to send us some of your product and then record a video for your reference.
Q:When can I get my machine after I paid?
A:The delivery time is based on the exact machine you confirmed.
Q:Can you design the machine according to our requirements?
A:Yes. We not only can customize the machine according to your technical drawing, but also can make new machine according to your requirements.
Q:Can you offer overseas technical support?
A:Yes. We can send engineer to your company to set the machine and train your
worker if needed.
Q:How can I trust you for the first time business ?
A:Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q:Is engineer available to serve oversea?
A:Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
