DetailedConfigurationParameters |
|
Ⅰ、PrintingSubstrate: |
|
Roll paper, plastic film, non - woven fabrics and other flexible packaging materials |
|
Ⅱ、The working principle of the machine (mainly including the following parts) : |
|
Unwind unit—Prepress correction—Prepress traction—Printing unit(6 color)—heat drying—Rewind traction—Rewind unit-Control system and console |
|
Ⅲ、Basic parameter: |
|
Model |
YTB-6 Color 800mm 1000mm 1100mm 1200mm 1300mm |
Printing Color |
6 color |
Max material width |
800mm |
Max effective printing width |
770mm |
Printing length |
280-1000mm |
Mechanical speed |
20-120m/min |
Printing speed |
20-100m/min(According to the printing of different materials) |
Plate thickness (including double-sided adhesive tape) |
2.28mm or 1.7mm(Customers can choose according to their own requirements) |
Anilox roller |
Ceramic anilox roller |
Ink type |
Water based ink or Solvent ink |
Heating power |
35KW |
Totalpower |
45KW |
Machine weight |
About:9200Kg |
Machine size |
5800*2300*3250mm |
Working power supply |
3P 380V 50HZ |
Ⅳ、MainFeature: |
|
Rack |
Thickened cast iron wallboard, extended bridge, base connected to foundation |
Ink anilox roller |
With ceramic roller |
Ink |
Adopt automatic circulation system, line ink adopts single small motor |
Control of motor speed |
Adopt frequency conversion to adjust speed, the operation fluctuation is small |
Rewind EPC |
Adopt high - grade automatic photoelectric rectifying control system |
Put the volume method |
Magnetic powder automatic tension control is adopted |
Ink on the way |
Combineddoctor blade and anilox roller inking. |
Rise and fall of plate |
Adopt hydraulic automatic take-off and landing plate |
Traction roller + bottom roller |
It is processed with special steel, processed by special process, and electroplated with 8-wire thick hard chrome protective layer, runout below 0.03mm |
Drying device |
There are three sets of devices for heating by ventilation and air blowing, among which heating is controlled by central constant temperature control system and grouping control |
Control method |
The circuit is controlled by PLC and the operation interface is operated by touch screen. The automation is more perfect and the equipment is more humanized. |

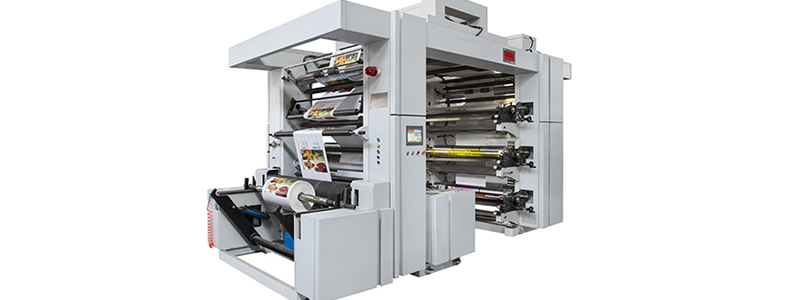

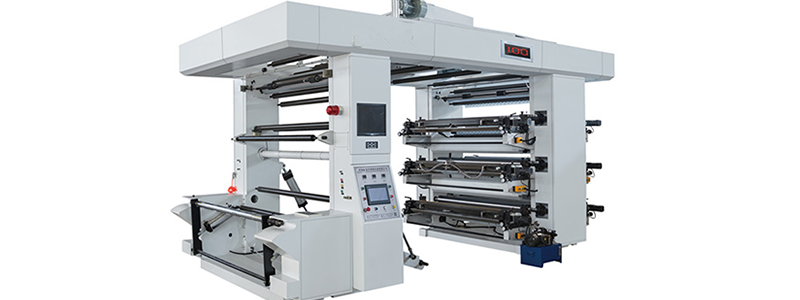

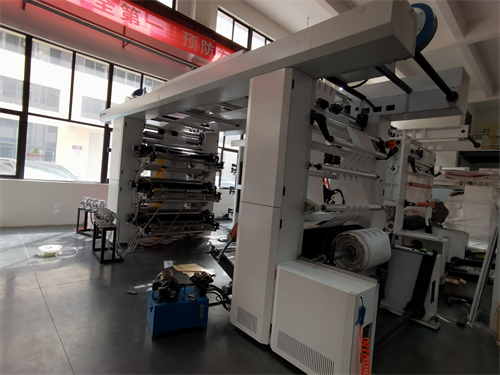

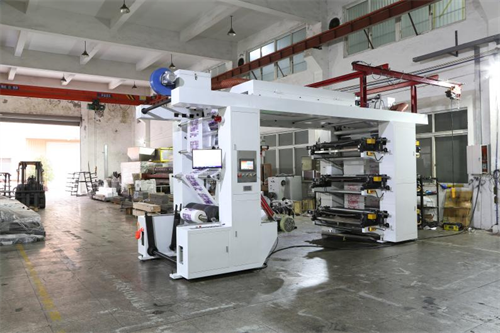

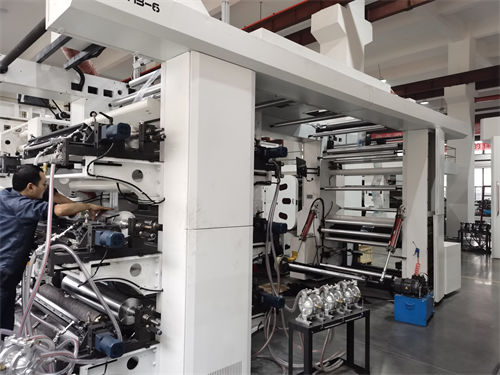

Pictures for reference:

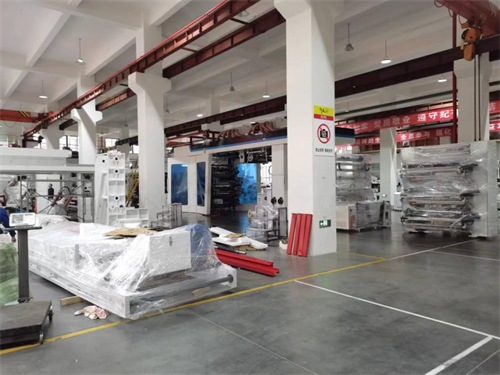

Loading photos:
FAQ:
Q:Are you factory or trading company?
A: We are factory and manufacture.
Q: Where is your factory located? How can I visit your factory?
A: We are located in wenzhou, you can fly to wenzhou airport. We can pick you up from the airport to your hotel.
Q:How to place my order?
A: Just contact our Trader Manager, E-mail,WhatsApp,Skype or telephone to confirm the product, make the deposit then we will start to manufacture.
Q:Can you offer some video or pictures of the Q packing machine?
A:Yes, of course. Besides, we can help you to have your products packaging if you are available to send us some of your product and then record a video for your reference.
Q:When can I get my machine after I paid?
A:The delivery time is based on the exact machine you confirmed.
Q:Can you design the machine according to our requirements?
A:Yes. We not only can customize the machine according to your technical drawing, but also can make new machine according to your requirements.
Q:Can you offer overseas technical support?
A:Yes. We can send engineer to your company to set the machine and train your
worker if needed.
Q:How can I trust you for the first time business ?
A:Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q:Is engineer available to serve oversea?
A:Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
