Feature:
1. From the discharge to the receipt of the short distance.
2. The ceramic stick is equipped with a scraper, which is printed and moist, and has a clear color.
3. Repeatedly printing the circumference of 190.5-635MM, filling the blank of the cascading flexographic printing machine, the slanting trademark printing machine, the petal printing machine and the printing length.
4. The use of gear color to solve the 360-degree coloring device gap, assembly, wear, etc., affecting the color accuracy and printing instability.
5. From left to right: coil feeding, printing, film cutting, laminating, slitting，winding a coherent completion .
6. Water-based ink (UV ink) printing, pollution-free, environmentally friendly, printing speed varies according to the network cable, the speed is also different, the fastest speed of printing labels is 90 meters per minute.
7. Printing bills, labels, cardboard, high-grade stickers, clothing tags, etc.
8. Printing materials: paper 20~250g/m2 self-adhesive soft coil and other materials.
9. Process:
1 discharging, 2 automatic constant tension, 3 scraper, 4 printing unit, 5 traction, 6 automatic constant tension, 7 center receiving
Technical parameters :
Printed form： Flexo
Printing speed： 10m/min－100m/min
Mechanical speed： 10m/min -110m/min
Maximum width of substrate： 450mm
Printing width： 50-450mm
Printing circumference： 190.5-635mm
Plate thickness ：1.7/ 2.28mm（special advance notice）
Anilox roller： specifications Φ85*450*7
Aluminum guide roller specifications： Φ70*450
Printing bottom roller： Φ85*450
Unwinding maximum diameter ：Φ550 mm
Maximum winding diameter ：Φ550 mm
Oven maximum temperature：80℃
Substrate core diameter ：74mm
Total power of the whole machine： 25KW
Drying heat source ：electric heating
Machine weight ：4000KG
Dimensions： 6300(L) x 1500 (W) x 1700（H）mm
Body color ：White (special advance notice)

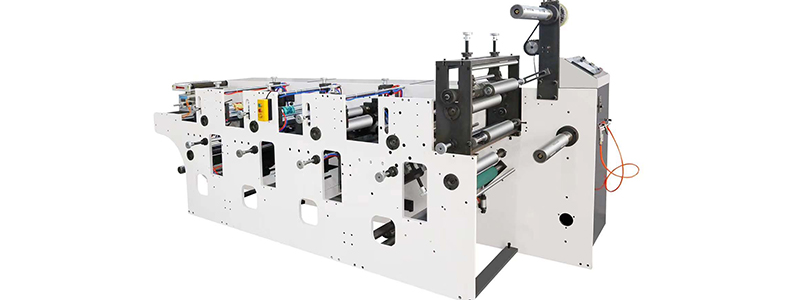

Unit type flexo printing machine：
The machine configuration：
Unwinding device：
1)Single arm center roll up
2) Maximum diameter of unwinding： Φ550 mm
3) Inflatable shaft specification： 3”
4) Number of inflation shafts： 1
5) Tension control range： 0-50kg
6) Tension control range： 5KG，
7) Analog Correction System 1 set

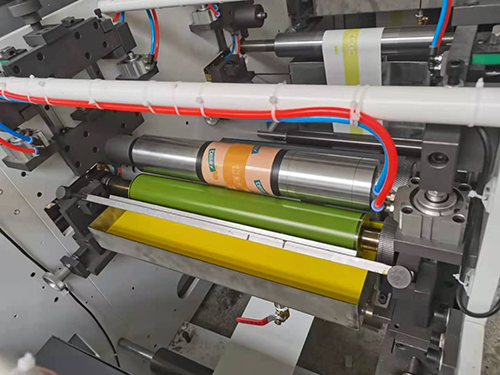

2. Printing unit
1) Drive mode: geared motor drive, synchronous belt drive.
2) Printing plate shaft：
（1） Vertical color: manual
（2）Horizontal color: manual
3) Overall composition: plate roll, scraper, ink tray, anilox roller.
4）Scraper: It adopts one-way scraper. The material of the scraper is made of high-strength aluminum alloy profile, which is convenient and quick to load, unload and clean.
4． Drying device：
1) Each color group is equipped with strong wind + LED curing
2) The oven electric heating and fan intelligent control, the temperature inside the oven can be controlled.
5．Winding device
1) Winding method: One-arm center curl
2) Paper core installation method: Expansion shaft expansion 1
3) Inflatable shaft specification: 3”
4) Tension control: Fully automatic tension control
5) Winding tension range: 1-5KG/full width
6) Single winding diameter: Maximum Φ500mm.
supporting facilities (users are responsible for their own)
1、Power supply: 3-phase *380V*50HZ, three-phase west line system
2、air compressor: 1KW (1 set)
Unit type flexo printing machine：
The above technical parameters and pictures are for reference only ：

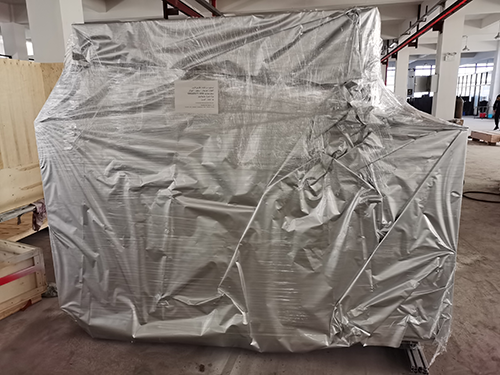

Packaging & Shipping ：
Pre-sale Service
1. Equipment model selection;
2.according to the special requirements of customers, personalized customized products;
3. Train technicians for customers free of charge;
4. Free professional technical engineers to plan the site on site and design the best process and plan.
5. Acceptance of the product;
6. Assist the client in drafting the construction plan;
Medium-sales Services
YIBO have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
After-sales Service
1.One Year Warranty,As long as there is a non-human fault in a year,free re-placement parts.
2.Parts Replacement,Don’t worry about the parts damaged or not sold after the machine is sold.we have a field factory with hundreds of enployees to serve you.
3.Engineer Asssignment,Lifelong maintentance,If your equipment breaks down,we will arrange engineers to repair it.
4.Online Instruction,We open online services,as long as your equipment failure,our engineers will be the first time for a one-to-one trou-bleshooting.
5.Feedback Survey,The engineer is required to bring a questionnaire to fill in the satisfaction with the engineer and the use of the equipment.
