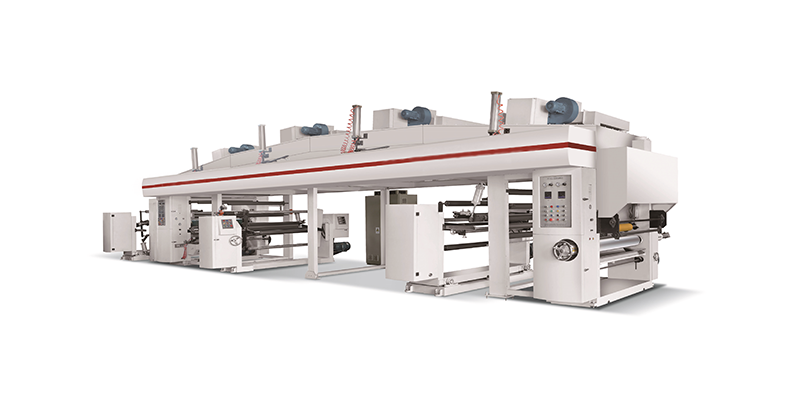

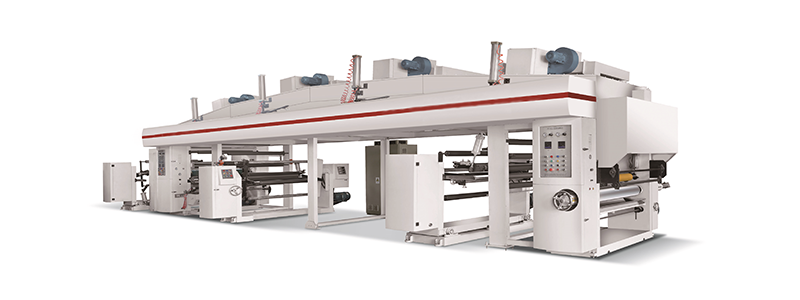

Main technical parameters
1、 The material width : 850-1350mm
2、 Guide roller ：900-1400 mm
3、 First unwind（gelatinize base material ）：film， PET 12-60μm，BOPP 19-60μm ，CPP 20-60μm and so on roller materials
4、 Second unwind（laminating base material ）：film， PET 12-60μm，BOPP 19-60μm ，CPP 20-60μm，PE 30-100μm and so on
5、 Types of adhesive: polyurethane adhesive, etc
6、 Laminating Max speed ：150m/min
7、 First unwind max diameter ：φ600mm
8、 Second unwind max diameter ：φ600mm
9、 Rewind Max diameter：φ800mm
10、 Rewind and unwind air shaft：φ3″
11、 Rewind and unwind paper core：φ3″, inner diameter φ76mm,outer diameterφ92mm
12、 Tension range: 3-30kg
13、 Oven : 9000mm (3parts )
14、 Maximum oven temperature : 80℃
15、 Drying form: electric heating hot air drying
16、 Main motor control: frequency converter synchronous control
17、 Voltage: 380V、50HZ、Three phase four wire
18、 Total power of hot air drying ：63kW
19、 Total power : abut 110kW（not including fan power ）
20、 Machine size: about 12600×3000×3700(mm) (L×W×H)
First unit unwind
1、 double position inverted discharging rack
2、 LPC horizontal photoelectric automatic deviation correction system, electric eye detectionThe discharging tension is detected by the tension detector, the magnetic powder brake is executed, and the tension controller is automatically controlled
4、 air shaft
5、 Parameters:
domestic magnetic powder brake, torque 100n.m.
Horizontal manual adjustment volume of coil: ±20mm.
Domestic LPC photoelectric automatic deviation correction controller zdk-sg212,
Permanent magnet low-speed synchronous motor for rectifying deviation 110TDY060 (made in suzhou)
Automatic tension controller and tension detector 300N (2),
Tension range: 3-30kg
Second unit unwind:
1. Double-station inverted feeding rack
2. Feeding tension is detected by tension detector, implemented by magnetic powder brake and controlled by tension controller
3. Material shaft shall be inflated with air shaft
4. Parameters: domestic magnetic powder brake, torque 100N.Horizontal manual adjustment volume of coil: ±20mm.Tension controller tension range: 3-30kg
