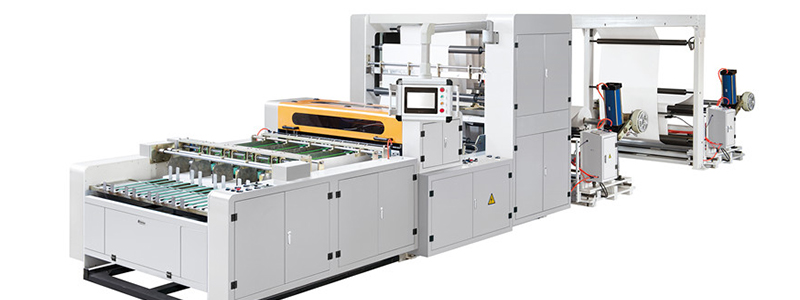

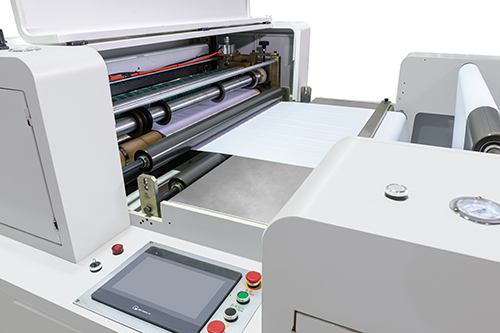

HQJ-1100 A4 paper cutting with automaticpackagingmachine（4 roll feeding）
Performance and characteristics:
a4 paper cutting and packaging machine is suitable for cutting all kinds of large drum packaging materials such as paper, paper plastic composite and color printing composite. This machine adopts servo motor to control the cutting length. The transmission system adopts the centralized control of pneumatic, photoelectric sensor and so on. This machine integrates light, electricity and air. It is characterized as easy operating, high cutting precision, stable performance and low noise. Pneumatic feeding can be optional. The machine is featured with motor variable frequency speed regulation, automatic counting, alarm stopping, manual adjustment of tension function with magnetic powder or friction piece.
Main Parameter:
Model: ZHQJ-1100mm
Raw Material Max Diameter: φ1500mm
Max Paper Width: 1000mm
Cutting Length: A4 Format
Longitudinal cutting width: Can be customized according to customer requirements, the choice of tertiary conveying.
Cutting Speed: 50-200times/min
Fixed length precision: ±0.2mm
Power Supply: 22kw
Machine Weight : About 9000kg
Main Configuration：
1.Unwinding Part：
(1) the frame adopts the steel plate and channel steel
(2) Adopts Axial pressure pneumatic feeding system（4 teams）
(3) Magnet tension control system
(4) Control method: use PLC auto/manual control
(5) Tension Control area 0-10kg
(6) Tension Magnet adopts 10kg controller（4sets）
(7) Wear Material is made in the form of a shaft (3 inch key bar type air expansion shaft random 4) and 2 gas expansion shaft dimensions: Phi 74 x 1300mm
(8) The transmission guide roller is made of aluminum guide bar, after dynamic balancing
(9) Base Material can left and right, Parallel adjustment
(10) Control Method: Pneumatic control
(11) Unwinding material, Automatic EPC control
(12) Automatic photocell EPC system 4set
2. Main Machine Part
a4 paper cutting and packaging machine Main Motor adopts inverter control 2.2kw
(1) the frame thickness of the frame is 16mm
(2) Adopt 10# high quality steel strip support (specification: 50 * 100).
1）Traction device
(1) Structure type: active traction passive compression type
(2) Traction base adopts High quality steel plate structure 4set
(3) Traction roller adopts Rubber roll (specification: 2pcs φ100×1150mm)
(4) Pressure method adopts cylinder control
(5) Cylinder number: 8pcs
(6) Transmission guide roller adopts aluminum guide roll (specification: 16 Phi 80 x 1150mm).
(7) Transmission guide roller can front and rear tensioning adjustment
(8) Adjustment Method: wheel control manual adjustment
(9) Motor adopts inverter adjustment 2.2kw 4set
(10) Inverter adopts Hangzhou Annengju
(11) Feeding buffer with floating arm mechanism
(12) Floating upper and lower tension adopts pneumatic traction method
(13) Float guide roller: Aluminum guide roller (specification: 12pcs φ80×1150mm)
(14) The whole feeding mechanism is intelligent controlled by displacement sensor.

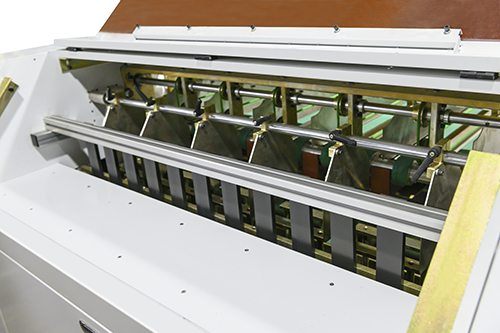

2）Lengthwise round knife trimming device
（1）Cutting method: the upper and lower knife can adjust the active circular cutting
（2）Cutting seat adopts High quality steel plate structure
（3）upper and lower knife use disc shaped circular knife silicon steel tool (8 sets) a set of round blade, size is: 70 x 105 x 1.2 round knife size: 55 x 80 x 20.
（4）Operation method: Manual Adjustment cutting position
（5）Transmission Method: synchronizing with the traction device
（6）Each of the upper and lower circle knives (1 sets)
（7）Adjustment 1set
（8）Waste disposal method: waste side draining and exhausting waste (5-20mm)
Finished product receiving table adopts automatic batch feeding.
(1) a4 paper cutting and packaging machine Control system have main control and tension control
(2) Main motor control: Main motor control, traction control, feeding control, cutting control, vertical circular knife trimming control, and automatic two-stage transportation control
(3) Tension Control: unwinding tension, The speed range of control is wide, and it has good performance at both low speed and high speed. And feed floating tension control.
(4) Electronic counting meter counting; alarm stop; automatic length setting, point entry and exit function.
(5) All Above electrical components use CHINT brand
(6) Electrical inverter guarantee 1 year
5 .Supporting facilities part: (Customer prepare for it)
(1) Power supply: three phase four wire air switch: voltage 3P.380V / 50Hz
2）Air source: maximum 5.5kg/cm2 x 5m3/min

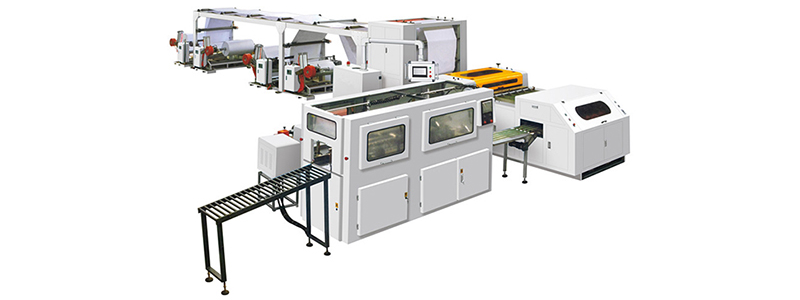

Paper packaging machine parts:
Model: DTDP-A4
Capacity: 10-12(pkg/min)
Roller Outside Paper Cutting and feeding: 10-12（pcs/min）
Packing Size: 210×297×50mm
(According to A4 paper 500 stacked altimeter)
Outside Paper Size: 550-560mm×386mm
Power: 380v 3ph4line
Total power:7KW
Roller power: 3.7kw
Compression power:0.6-0.8mm
Overall dimension: 3400mm×3000mm×1600mm
Weight: 2T
Scope of application:Packing Material should be the package of hexahedron on adhesive tape for color printing
Parts list :
1 Sensor Switch: 2pcs Omron
2 Sensor Switch (Groove type): 11pcs Omron
3 Middle Rely: 11pcs Omron
4 AC motor: 5pcs Schneider
5 Cam bearing with Handle: 1set Japan NTN
6 Bearing: 1set Japan NSK
7 PLC S7-200: 1set Siemens
8 photocell eye : 1pcs Omron
9 Switch: 3pcs Omron
10 Touch Screen 7in: 1pcs Taiwan Weinview
11 Optical Fiber Switch: 1pcs Omron
12 Suction belt: 2pcs Siegling
13 Alarm indicator lamp: 1set Onpow
14 Urgent stop button: 1set Chint
15 Auto Glue Roller: 3set Our factory production
16 Motor0.2KW 1:15: 1pcs Taichen
17 motor0.4KW 1:10: 1pcs Taichen
18 motor 1.1KW: 1pcs Shanghai Lichao
19 motor120kW 1:1: 3pcs Oubang
20 fan 2.2KW: 1pcs Fuli
21 fan 1.5KW: 1pcs Fuli
22 Gear box 1:17: 1set Shenfei
23 Cylinder solenoid Valve: 14pcs Mindman
24 FZ50S Magnetic powder: 1pcs H.G
25 Outside Paper Cutter: 1set High speed steel
26 7.5KG Clutch: 1pcs Steki
27 Circuit breaker: 1set Chint
