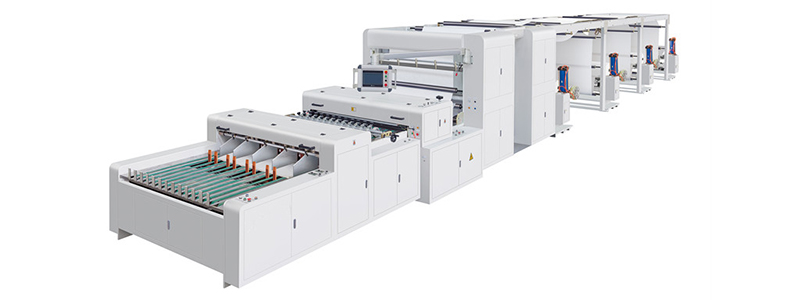

HQJ-1100 A4 paper cutting with automaticpackagingmachine(4 roll feeding)
Performance and characteristics:
fully automatic a4 paper making machine is suitable for cutting all kinds of large drum packaging materials such as paper, paper plastic composite and color printing composite. This machine adopts servo motor to control the cutting length. The transmission system adopts the centralized control of pneumatic, photoelectric sensor and so on. This machine integrates light, electricity and air. It is characterized as easy operating, high cutting precision, stable performance and low noise. Pneumatic feeding can be optional. The machine is featured with motor variable frequency speed regulation, automatic counting, alarm stopping, manual adjustment of tension function with magnetic powder or friction piece.
Main Parameter:
Model: ZHQJ-1100mm
Raw Material Max Diameter: φ1500mm
Max Paper Width: 1000mm
Cutting Length: A4 Format
Longitudinal cutting width: Can be customized according to customer requirements, the choice of tertiary conveying.
Cutting Speed: 50-200times/min
Fixed length precision: ±0.2mm
Power Supply: 22kw
Machine Weight : About 9000kg
Finished product receiving table adopts automatic batch feeding.
(1)The transmission adopts the bipolar mode, the conveyer motor adopts frequency conversion speed regulation, the frequency converter adopts the Hangzhou energy poly 0.55kw, the adjustable way of the feeding baffle, the adjustable baffle position, the lateral pat paper, the longitudinal filming paper.
fully automatic a4 paper making machine Electrical control part: (conjoined control main cabinets and part conjoined parallel control) the whole machine adopts Taiwan's PLC touch screen, and the MITSUBISHI adopts special industrial control system.
(1) This Machine Control system have main control and tension control
(2) Main motor control: Main motor control, traction control, feeding control, cutting control, vertical circular knife trimming control, and automatic two-stage transportation control
(3) Tension Control: unwinding tension, The speed range of control is wide, and it has good performance at both low speed and high speed. And feed floating tension control.
(4) Electronic counting meter counting; alarm stop; automatic length setting, point entry and exit function.
(5) All Above electrical components use CHINT brand
(6) Electrical inverter guarantee 1 year
5 .Supporting facilities part: (Customer prepare for it)
(1) Power supply: three phase four wire air switch: voltage 3P.380V / 50Hz
(2)Air source: maximum 5.5kg/cm2 x 5m3/min

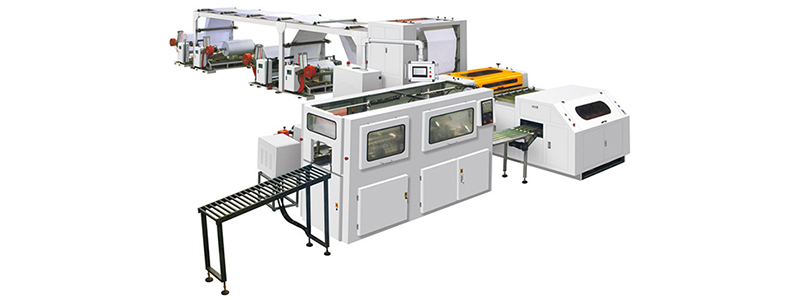

Paper packaging machine parts:
Model: DTDP-A4
Capacity: 10-12(pkg/min)
Roller Outside Paper Cutting and feeding: 10-12(pcs/min)
Packing Size: 210×297×50mm
(According to A4 paper 500 stacked altimeter)
Outside Paper Size: 550-560mm×386mm
Power: 380v 3ph4line
Total power:7KW
Roller power: 3.7kw
Compression power:0.6-0.8mm
Overall dimension: 3400mm×3000mm×1600mm
Weight: 2T
Scope of application:Packing Material should be the package of hexahedron on adhesive tape for color printing
fully automatic a4 paper making machine Parts list :
1 Sensor Switch: 2pcs Omron
2 Sensor Switch (Groove type): 11pcs Omron
3 Middle Rely: 11pcs Omron
4 AC motor: 5pcs Schneider
5 Cam bearing with Handle: 1set Japan NTN
6 Bearing: 1set Japan NSK
7 PLC S7-200: 1set Siemens
8 photocell eye : 1pcs Omron
9 Switch: 3pcs Omron
10 Touch Screen 7in: 1pcs Taiwan Weinview
11 Optical Fiber Switch: 1pcs Omron
12 Suction belt: 2pcs Siegling
13 Alarm indicator lamp: 1set Onpow
14 Urgent stop button: 1set Chint
15 Auto Glue Roller: 3set Our factory production
16 Motor0.2KW 1:15: 1pcs Taichen
17 motor0.4KW 1:10: 1pcs Taichen
18 motor 1.1KW: 1pcs Shanghai Lichao
19 motor120kW 1:1: 3pcs Oubang
20 fan 2.2KW: 1pcs Fuli
21 fan 1.5KW: 1pcs Fuli
22 Gear box 1:17: 1set Shenfei
23 Cylinder solenoid Valve: 14pcs Mindman
24 FZ50S Magnetic powder: 1pcs H.G
25 Outside Paper Cutter: 1set High speed steel
26 7.5KG Clutch: 1pcs Steki
27 Circuit breaker: 1set Chint

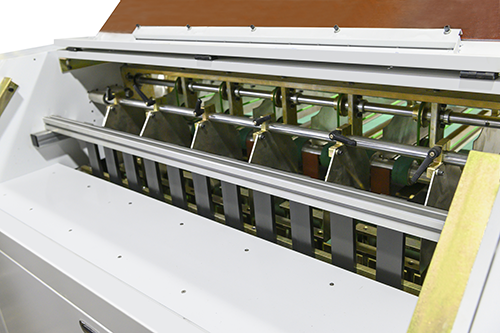

Pictures are for reference only:
After-sales Service
1.One Year Warranty,As long as there is a non-human fault in a year,free re-placement parts.
2.Parts Replacement,Don’t worry about the parts damaged or not sold after the machine is sold.we have a field factory with hundreds of enployees to serve you.
3.Engineer Asssignment,Lifelong maintentance,If your equipment breaks down,we will arrange engineers to repair it.
4.Online Instruction,We open online services,as long as your equipment failure,our engineers will be the first time for a one-to-one trou-bleshooting.
5.Feedback Survey,The engineer is required to bring a questionnaire to fill in the satisfaction with the engineer and the use of the equipment.
